Customized Industrial Aluminum Extrusion Profile with Precision Machining for EV Charging Poles

TRUNG QUỐC Hentec Industry Co.,Ltd Chứng chỉ
TRUNG QUỐC Hentec Industry Co.,Ltd Chứng chỉ
Thanks a lot for your support for more than 8 years ,we are really appreciate for the good quality of the products and the quality service .

—— James Scott

We have received the goods , they look perfect ,thanks for the help of Team Hentc .

—— Ane Unamuno

Le succès de ce nouveau projet dépend du support de l'équipe HENTEC en termes de technologie de traitement. Merci à HENTEC de nous aider à contrôler les coûts de manière hiệu quả et à répondre à nos exigences en termes de haute Qualité. Nous nous réjouissons de notre hợp tác trong tương lai!

—— Yann Pauwels

Tôi trò chuyện trực tuyến bây giờ

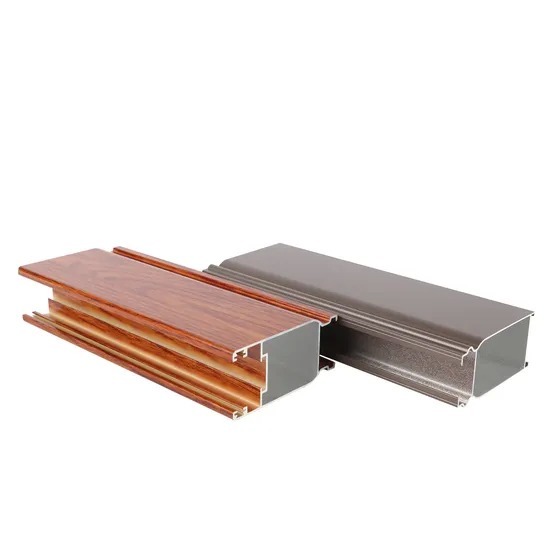

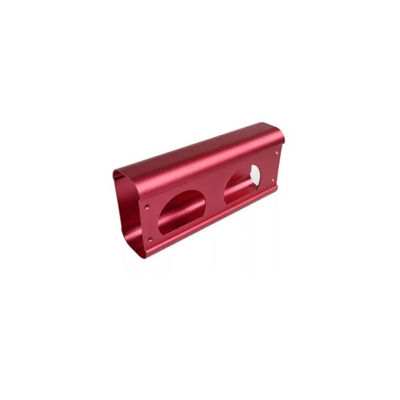

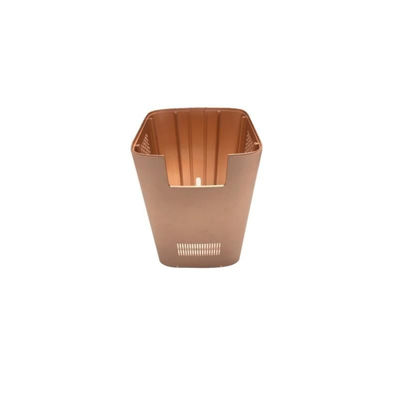

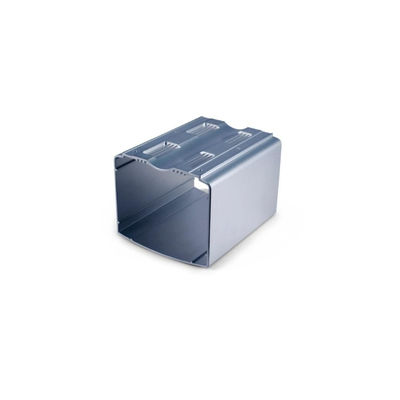

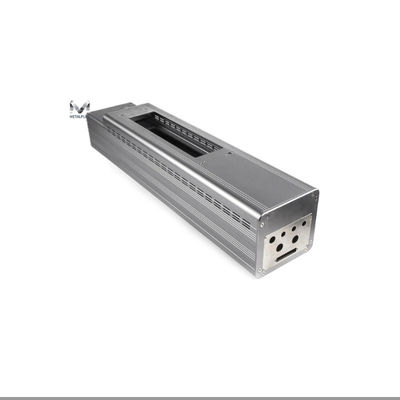

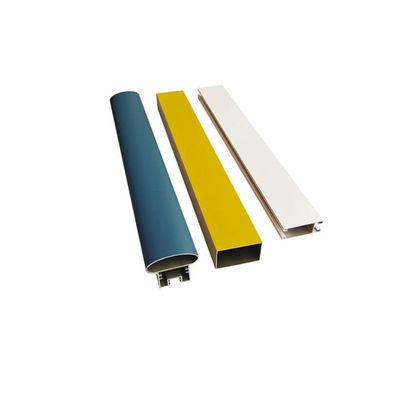

Customized Industrial Aluminum Extrusion Profile with Precision Machining for EV Charging Poles

Customized Industrial Aluminum Extrusion Profile with Precision Machining for EV Charging Poles
Customized Industrial Aluminum Extrusion Profile with Precision Machining for EV Charging Poles Customized Industrial Aluminum Extrusion Profile with Precision Machining for EV Charging Poles Customized Industrial Aluminum Extrusion Profile with Precision Machining for EV Charging Poles Customized Industrial Aluminum Extrusion Profile with Precision Machining for EV Charging Poles Customized Industrial Aluminum Extrusion Profile with Precision Machining for EV Charging Poles Customized Industrial Aluminum Extrusion Profile with Precision Machining for EV Charging Poles

Hình ảnh lớn :  Customized Industrial Aluminum Extrusion Profile with Precision Machining for EV Charging Poles

Thông tin chi tiết sản phẩm:
Chứng nhận: SONCAP, ISO, RoHS, TUV
Tài liệu: Sổ tay sản phẩm PDF
Thanh toán:
Số lượng đặt hàng tối thiểu: 500
Giá bán: 1
Chi tiết sản phẩm
Vật liệu: Hợp kim 6063, 6061, 6060, 6005, 6082 Tính khí: T4, T5, T6, T66
Bề mặt hoàn thiện: Anodize, điện di, lớp phủ bột, lớp phủ PVDF, sơn hạt gỗ Loại hồ sơ: Hồ sơ nhôm công nghiệp
Xử lý dung sai: Độ dài dung sai 0,2mm, dung sai lỗ 0,05mm Thành phần hóa học: Si 0,2-0,6, Fe 0,35, Cu 0,1, Mn 0,1, Mg 0,45-0,9, CR 0,1, Zn 0,1, Ti 0,1, tạp chất 0,15, AL REST
Độ bền kéo: ≥ 160MPa (T5), ≥ 205MPa (T6) Sức mạnh năng suất: ≥ 110MPa (T5), ≥ 180MPa (T6)
Kéo dài: ≥ 8% Đường kính ngoài tối đa: 350mm
Khả năng đùn tối đa: 6800 tấn Đường kính hồ sơ tối đa: 600mm
Chiều dài gia công CNC: lên đến 6 mét áp lực đấm: 50 đến 100 tấn
Năng lực sản xuất: 50000 CÁI / THÁNG
Làm nổi bật:

Customized Aluminum Extrusion Profile

,

Industrial Aluminum Extrusion Profile

,

Precision Machining Aluminum Extrusion

Anodized Vehicle EV Charging Pole Aluminum Extrusions with CNC Machining
MetalPlus manufactures high-quality customized aluminum enclosures including aluminum profile housing, die-cast aluminum boxes, standard aluminum chassis, rack mount housing, and CNC precision machined parts.
Our special advantage is custom aluminum profile housing. Using state-of-the-art CNC processing equipment, we manufacture enclosures to exact customer specifications with on-time delivery.
Product Specifications
Item Details
Material Alloy 6063, 6061, 6060, 6005, 6082 or customer choice
Temper T4, T5, T6, T66
Surface Anodize (clear, satin, bronze, black, golden, silver, multicolor), electrophoresis, powder coating, PVDF coating, wood grain painting
MOQ 1 ton (12 tons for 20ft container; 24 tons for 40ft container)
Profile Type Industrial aluminum profiles for machinery, trailers, electronics, medical and industrial applications
Processing Extruding, precise cutting (0.2mm tolerance), straight rectification, bending, drilling, tapping, stamping, pulling, CNC milling/lathe (0.05mm hole tolerance)
Certification ISO14001:2004, ISO9001:2000, RoHS, SGS
Standards GB/T6892-2006 (China), EN12020-1,2(2001) (Europe), AAMA611-98 (USA)
Product Components
S/N Part Name QTY Material
1 Extrusion profile 1 AL6063
2 Front and rear panels 2 AL
3 Screws 4/8 SS
Key Features
  • Aluminum top+bottom plate with case design suitable for rail transit, new energy, power equipment, and harsh environments
  • Extruded aluminum frame and die-cast panels provide waterproofing and heat dissipation
  • Inner-grooved body frame allows horizontal PCB or chassis mounting
  • Ideal for measuring instruments, industrial control boxes, outdoor WiFi access points, and gateways
Our Advantages
  • Engineering design support and consultation
  • Comprehensive aluminum processing: cutting, punching, drilling, milling, fabricating
  • Strict quality control with production inspections and final checks
  • 15-year product warranty
  • OEM/ODM services with custom molds and production
Applications
Inverter, Signal-Amplifier, Video Pusher, Changer of Lithium-Ion Battery, Mini Host
Technical Data
Chemical Composition
Alloy Si Fe Cu Mn Mg Cr Zn Ti Impurity Al
6063 0.2-0.6 0.35 0.1 0.1 0.45-0.9 0.1 0.1 0.1 0.15 Rest
6061 0.4-0.8 0.7 0.15-0.4 0.15 0.8-1.2 0.04-0.35 0.25 0.15 0.15 Rest
Mechanical Properties
Alloy Temper Tensile Strength Yield Strength Elongation
6063 T5 ≥ 160Mpa ≥ 110Mpa ≥ 8%
6063 T6 ≥ 205Mpa ≥ 180Mpa ≥ 8%
6061 T6 ≥ 265Mpa ≥ 245Mpa ≥ 8%
Technical Support
  • Custom design services including CAD drawings and 3D models
  • Design analysis and optimization by professional R&D team
  • One-stop service from product design to surface treatment
  • Strict quality control throughout production process
Customized Industrial Aluminum Extrusion Profile with Precision Machining for EV Charging Poles 0
Manufacturing Capabilities
Extrusion
44 aluminum extrusion lines producing profiles up to 350mm diameter, including 6800 ton extruder for industrial profiles up to 600mm diameter. Capabilities include radiators, fan blades, motor enclosures, and solar cell frames.
Customized Industrial Aluminum Extrusion Profile with Precision Machining for EV Charging Poles 1
Anodizing
6 anodizing lines producing uniform oxidation films in various colors (silver, black, gold, champagne, imitation steel). Strict quality control ensures color consistency.
Customized Industrial Aluminum Extrusion Profile with Precision Machining for EV Charging Poles 2 Customized Industrial Aluminum Extrusion Profile with Precision Machining for EV Charging Poles 3
Painting
4 powder spraying lines using Gema Switzerland nozzles and environmentally friendly paints with strong adhesion and durable colors.
Customized Industrial Aluminum Extrusion Profile with Precision Machining for EV Charging Poles 4 Customized Industrial Aluminum Extrusion Profile with Precision Machining for EV Charging Poles 5 Customized Industrial Aluminum Extrusion Profile with Precision Machining for EV Charging Poles 6
CNC Machining
Advanced equipment including 12 PRATIC machining centers for complex profiles up to 6 meters, Wegoma automatic cutting machines, 30 punching machines (50-100 tons), and 10 stretch bending machines.
Customized Industrial Aluminum Extrusion Profile with Precision Machining for EV Charging Poles 7 Customized Industrial Aluminum Extrusion Profile with Precision Machining for EV Charging Poles 8 Customized Industrial Aluminum Extrusion Profile with Precision Machining for EV Charging Poles 9
Packing and Shipping
Manual packaging with strict warehouse management procedures. Organized storage with detailed records for all transactions.
Customized Industrial Aluminum Extrusion Profile with Precision Machining for EV Charging Poles 10
Certifications
Customized Industrial Aluminum Extrusion Profile with Precision Machining for EV Charging Poles 11
Notable Projects
Soccer City Stadium, Johannesburg: Main aluminum supplier for Africa's largest stadium (94,000 seats).
Lobster Trailers: Design optimization and production for Nordic trailer manufacturer.
School Furniture Project: Supplied aluminum legs for school desks.
Customized Industrial Aluminum Extrusion Profile with Precision Machining for EV Charging Poles 12 Customized Industrial Aluminum Extrusion Profile with Precision Machining for EV Charging Poles 13 Customized Industrial Aluminum Extrusion Profile with Precision Machining for EV Charging Poles 14 Customized Industrial Aluminum Extrusion Profile with Precision Machining for EV Charging Poles 15
