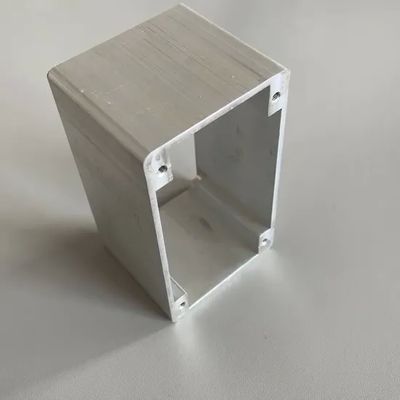

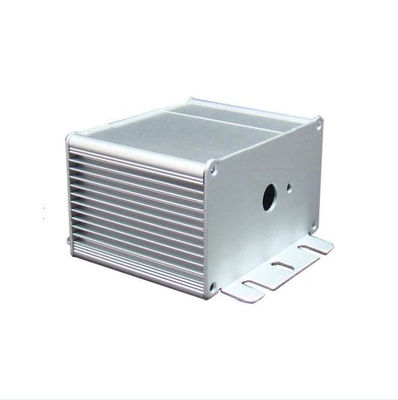

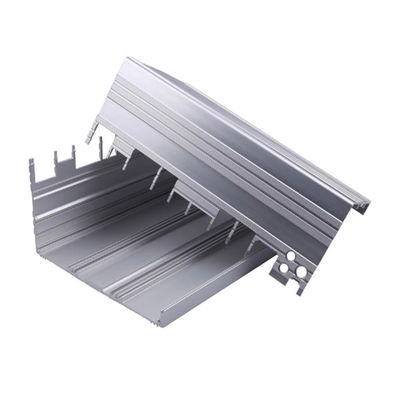

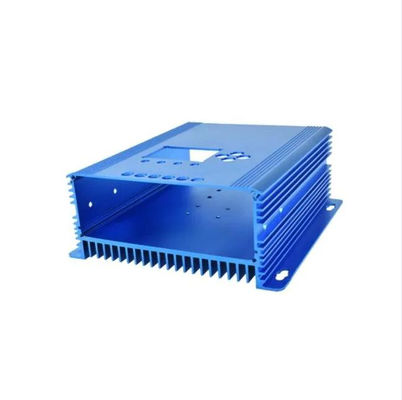

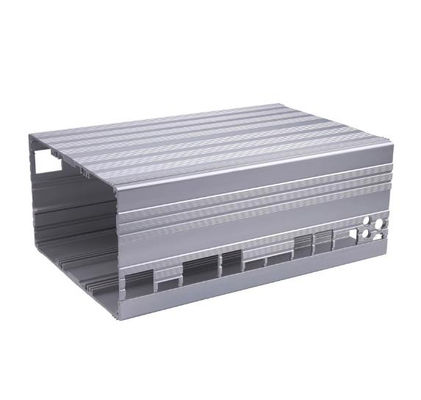

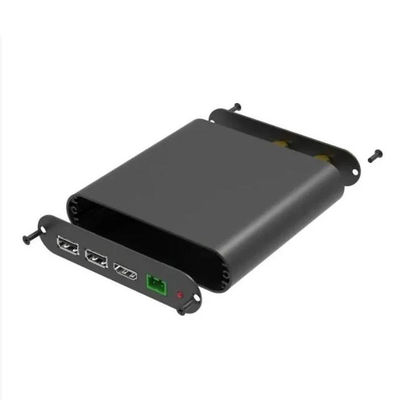

CNC Customized Industrial Grade Aluminum Profile Enclosure with Customized Dimension for Electrical Housing

CNC Customized Industrial Grade Aluminum Profile Enclosure with Customized Dimension for Electrical Housing
CNC Customized Industrial Grade Aluminum Profile Enclosure with Customized Dimension for Electrical Housing CNC Customized Industrial Grade Aluminum Profile Enclosure with Customized Dimension for Electrical Housing CNC Customized Industrial Grade Aluminum Profile Enclosure with Customized Dimension for Electrical Housing CNC Customized Industrial Grade Aluminum Profile Enclosure with Customized Dimension for Electrical Housing CNC Customized Industrial Grade Aluminum Profile Enclosure with Customized Dimension for Electrical Housing CNC Customized Industrial Grade Aluminum Profile Enclosure with Customized Dimension for Electrical Housing

Hình ảnh lớn :  CNC Customized Industrial Grade Aluminum Profile Enclosure with Customized Dimension for Electrical Housing

Thông tin chi tiết sản phẩm:
Chứng nhận: ISO
Tài liệu: Sổ tay sản phẩm PDF
Thanh toán:
Số lượng đặt hàng tối thiểu: 100
Giá bán: 1.99
Chi tiết sản phẩm
Material: Aluminium alloy 6063, 6061, 6082, 6005 Tính khí: T5, T6
Surface treatment: Anodized, powder coated, electrophoresis, sand blasting Color options: Silver, Black, Gold, Champagne, Custom
Phương pháp xử lý: Phay CNC Thành phần hợp kim: 6063
Độ bền kéo: ≥ 160MPa (T5), ≥ 205MPa (T6) Sức mạnh năng suất: ≥ 110MPa (T5), ≥ 180MPa (T6)
Kéo dài: ≥ 8% Năng lực sản xuất: 100.000 tấn/năm
Extrusion diameter: Up to 350mm Maximum profile diameter: 600mm
Chiều dài gia công CNC: lên đến 6 mét Độ dày đột dập: trên 5 mm
độ chính xác uốn: Chọn chính xác
Làm nổi bật:

CNC Customized Aluminum Profile Enclosure

,

Industrial Grade Electrical Housing

,

Customized Dimension Aluminum Extrusion Profile

CNC Customized Aluminum Profile Enclosure Shell Electrical Housing
CNC Customized Industrial Grade Aluminum Profile Enclosure with Customized Dimension for Electrical Housing 0 CNC Customized Industrial Grade Aluminum Profile Enclosure with Customized Dimension for Electrical Housing 1
About Metalplus
Metalplus specializes in aluminum industrial profile design and manufacturing with a production base of more than 100,000 square meters and annual capacity exceeding 100,000 tons.
Product Navigation
Product Specifications
  1. Material: Aluminum alloy 6063, 6061, 6082, 6005 or according to requirement
  2. Temper: T5, T6
  3. Quality standard: GB5237-2008
  4. Surface treatment: Mill finish, anodized, powder coated, electrophoresis, sand blasting etc. PVDF coating, wood grain painting, matted, polishing bright
  5. Color available: Silver, Bronze, champagne, Matte, Natural for anodizing, Ral for powder coating
  6. Packing details: Protected film inside and shrinking film outside
  7. Samples time: two weeks after receiving the mold fee
  8. Delivery: 20 days after deposit
  9. Production Capacity: 100,000 tons/year
  10. MOQ: 1 TONS
  11. Payment terms: 1) T/T 2) L/C at sight
  12. Port: SHANGHAI PORT
  13. 17 press extruder
  14. OEM & ODM service
Manufacturing Process
Die design → Die making → Extruding → Cutting → CNC Machining → Surface treatment → Packing
Product Advantages
Superior Heat Dissipation
The aluminum alloy motor housing maintains temperature within optimal range during continuous operation due to aluminum's excellent thermal properties.
Lightweight Construction
Aluminum extrusion products significantly reduce weight for easier transportation and installation while maintaining structural integrity.
Excellent Plasticity
Aluminum alloys offer superior ductility and plasticity compared to steel and cast iron, allowing for more design flexibility.
Environmental Benefits
Our aluminum housing motors feature waterproof, dustproof, and corrosion-resistant properties with energy-efficient performance and long service life.
Technical Parameters
Chemical Composition
Alloy Si Fe Cu Mn Mg Cr Zn Ti Impurity Al
6063 0.2-0.6 0.35 0.1 0.1 0.45-0.9 0.1 0.1 0.1 0.15 Rest
6061 0.4-0.8 0.7 0.15-0.4 0.15 0.8-1.2 0.04-0.35 0.25 0.15 0.15 Rest
6060 0.3-0.6 0.1-0.3 0.1 0.1 0.35-0.6 - 0.15 0.1 0.15 Rest
6005 0.6-0.9 0.35 0.1 0.1 0.40-0.6 0.1 0.1 0.1 0.15 Rest
Mechanical Properties
Alloy Temper Tensile strength Yield strength Elongation
6063 T5 ≥ 160Mpa ≥ 110Mpa ≥ 8%
6063 T6 ≥ 205Mpa ≥ 180Mpa ≥ 8%
6061 T6 ≥ 265Mpa ≥ 245Mpa ≥ 8%
Technical Support
  1. Our team provides comprehensive design support including CAD drawings and 3D models for customer confirmation, followed by custom mold creation and precision extrusion.
  2. For clients with existing designs, our R&D team optimizes for production efficiency and cost-effectiveness while maintaining performance requirements.
  3. Our one-stop service covers product design, mold customization, aluminum bar melting, extrusion profiling, precision machining, and surface treatment with strict quality control throughout the process.
CNC Customized Industrial Grade Aluminum Profile Enclosure with Customized Dimension for Electrical Housing 2
Production Capabilities
Extrusion
With 44 aluminum extrusion lines including a 6800 ton unit, we produce industrial profiles up to 600mm diameter for applications including radiators, fan blades, motor enclosures, and solar cell frames.
CNC Customized Industrial Grade Aluminum Profile Enclosure with Customized Dimension for Electrical Housing 3 CNC Customized Industrial Grade Aluminum Profile Enclosure with Customized Dimension for Electrical Housing 4 CNC Customized Industrial Grade Aluminum Profile Enclosure with Customized Dimension for Electrical Housing 5
Anodizing
Our 6 anodizing lines produce uniform oxidation films that enhance corrosion resistance, hardness, and wear resistance. Available in silver, black, gold, champagne, and imitation steel colors with custom options available.
Painting
Four powder spraying lines using Swiss Gema nozzles apply environmentally friendly paint with excellent adhesion and color retention.
CNC Machining
  • 12 PRATIC machining centers handle complex profiles up to 6 meters
  • Wegoma automatic cutting machines for precision cutting
  • 30 punching machines (50-100 ton capacity) for thick profiles
  • 10 stretch bending machines for precise angle bending
  • 10 milling machines for various plane machining
CNC Customized Industrial Grade Aluminum Profile Enclosure with Customized Dimension for Electrical Housing 6 CNC Customized Industrial Grade Aluminum Profile Enclosure with Customized Dimension for Electrical Housing 7 CNC Customized Industrial Grade Aluminum Profile Enclosure with Customized Dimension for Electrical Housing 8
Packing & Shipping
Finished products are carefully packaged with protective film and undergo strict quality inspection before shipment. Our organized warehouse system ensures accurate product tracking.
CNC Customized Industrial Grade Aluminum Profile Enclosure with Customized Dimension for Electrical Housing 9
Certifications
CNC Customized Industrial Grade Aluminum Profile Enclosure with Customized Dimension for Electrical Housing 10
Company History
  • 2004: Recognized Brand of the Building Industry Material Market
  • 2006: Certificate for Product Exemption from Quality Surveillance Inspection & ISO9001
  • 2009: Advanced Company, Jiangsu Famous Brand Certificate, Credible Product of Quality in Jiangsu Province
  • 2012: Established business relationships with Panasonic and LG
  • 2015: Became innovative producer and supplying partner for European clients
  • 2017: Developed new baseboard heater products
  • 2019: Partnered with world's largest heater manufacturers as aluminum shell supplier
  • 2023: Expanding overseas distribution network for mutual benefits
Notable Projects
Soccer City Stadium, Johannesburg: As main aluminum supplier for Africa's largest stadium (94,000 seats), our products contributed to this landmark project.
CNC Customized Industrial Grade Aluminum Profile Enclosure with Customized Dimension for Electrical Housing 11 CNC Customized Industrial Grade Aluminum Profile Enclosure with Customized Dimension for Electrical Housing 12
Lobster Trailers: Our optimized aluminum solutions for this Nordic trailer manufacturer demonstrate our design and production capabilities.
CNC Customized Industrial Grade Aluminum Profile Enclosure with Customized Dimension for Electrical Housing 13
School Furniture Project: Supplied aluminum legs for school desks, showcasing our ability to support local education initiatives.
