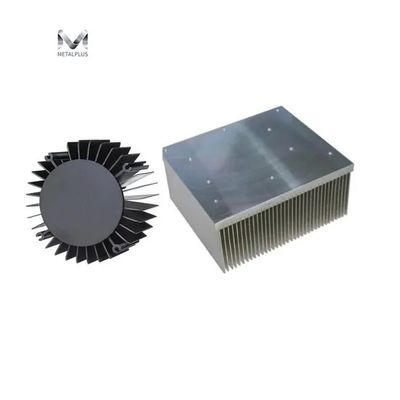

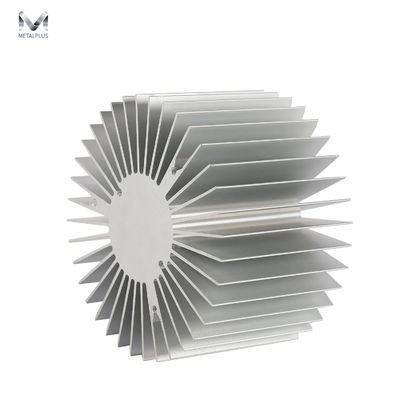

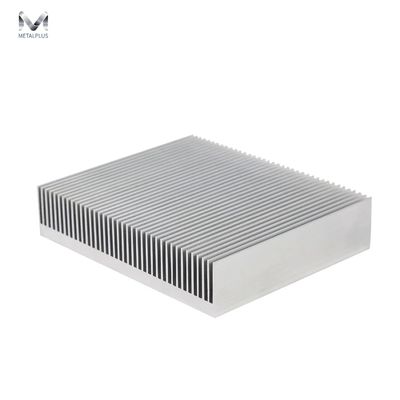

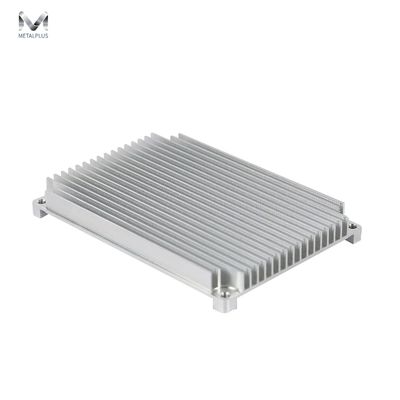

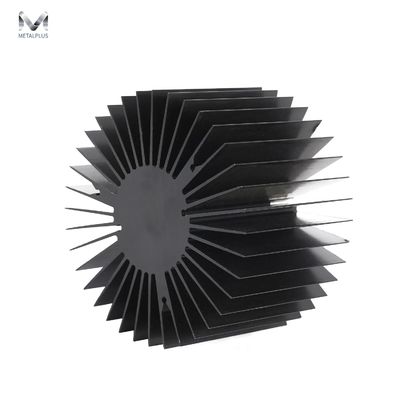

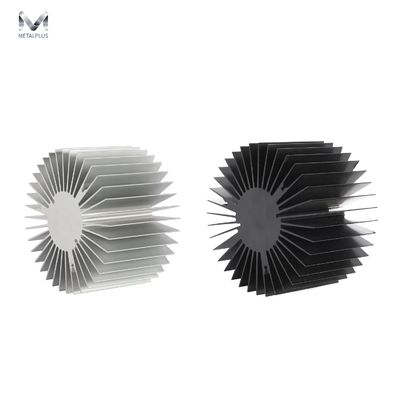

6063 Alloy LED Light Heatsink with 2 Year Warranty and ISO9001 Certified Aluminum Extrusion Profile

6063 Alloy LED Light Heatsink with 2 Year Warranty and ISO9001 Certified Aluminum Extrusion Profile
6063 Alloy LED Light Heatsink with 2 Year Warranty and ISO9001 Certified Aluminum Extrusion Profile 6063 Alloy LED Light Heatsink with 2 Year Warranty and ISO9001 Certified Aluminum Extrusion Profile 6063 Alloy LED Light Heatsink with 2 Year Warranty and ISO9001 Certified Aluminum Extrusion Profile 6063 Alloy LED Light Heatsink with 2 Year Warranty and ISO9001 Certified Aluminum Extrusion Profile 6063 Alloy LED Light Heatsink with 2 Year Warranty and ISO9001 Certified Aluminum Extrusion Profile 6063 Alloy LED Light Heatsink with 2 Year Warranty and ISO9001 Certified Aluminum Extrusion Profile

Hình ảnh lớn :  6063 Alloy LED Light Heatsink with 2 Year Warranty and ISO9001 Certified Aluminum Extrusion Profile

Thông tin chi tiết sản phẩm:
Tài liệu: Sổ tay sản phẩm PDF
Thanh toán:
Số lượng đặt hàng tối thiểu: 500
Giá bán: 1.99
Tiếp xúc
Chi tiết sản phẩm
Vật liệu: Nhôm Màu sắc: Đen
Hình dạng: Tròn Surface Treatment: Mill finish, Anodizeding, Sand Blasting, Powder coating
Alloy Type: 6063, 6061, 6060, 6005 Tensile Strength: 160-265Mpa
Yield Strength: 110-245Mpa Kéo dài: ≥ 8%
Năng lực sản xuất: 50000 CÁI / THÁNG Chiều kính tối đa: 350mm
Đường kính đùn tối đa: 600mm Chiều dài gia công CNC: lên đến 6 mét
Độ dày đột dập: trên 5 mm Anodizing Colors: Silver, Black, Gold, Champagne, Imitation Steel
Thời gian giao hàng: 7 ~ 10 ngày
Làm nổi bật:

6063 Alloy LED Light Heatsink

,

2 Year Warranty Aluminum Extrusion Profile

,

ISO9001 Certified Aluminum Heat Sink

Silvery Anodized Custom LED Light Heatsink Extrusion Profiles with CNC Machining
Aluminum heat sink extrusion is the most common and cost-efficient thermal solution for electronic devices and industrial applications. Our extruded aluminum heat sinks offer lightweight construction, excellent thermal performance, and cost-effective manufacturing.
Product Specifications
Product Name Aluminum Alloy LED Heat Sink
Raw Material Aluminium
Surface Treatment Mill finish, Anodizing, Sand Blasting, Powder coating
Equipment CNC machine, grinding and shot peening machine, Precise tensile strength testers, magnetic powder flaw detectors
Deep Processing Cutting, Drilling, Tapping, Polish, Milling
Certification ISO9001, SGS certificate, ROHS report
Usage High-power Semiconductor, Power Electronics cooling, LED/lamp electronic ballast, audio equipment, power amplifier circuits, automatic control meters
Delivery Time 7-10 Days after order confirmation
Technology Support
With over 600 employees including 50 R&D specialists, we provide comprehensive support from initial design to final production. Our process includes:
  • Rapid design drawing and specification development
  • Quick quotation and lead time confirmation
  • Prototype production and testing
  • Full-scale production after approval
Applications
Our heat sinks are essential components in various industries, including:
  • Audio Equipment
  • UPS/EPS power supplies
  • Inverters and transformers
  • Battery packs and new energy controllers
  • Charging piles and welding machines
  • Communication transmitters and base stations
  • Control cabinets and power regulators
Company Advantages
  • ISO 9001:2008 certified
  • Comprehensive production facilities including extrusion machines, powder painting lines, and CNC equipment
  • Advanced equipment and excellent R&D team
  • Professional designers and experienced workers
  • Strict quality control with 100% inspection
  • Highly skilled manufacturing processes
Technical Data
Chemical Composition
Alloy Si Fe Cu Mn Mg Cr Zn Ti Impurity Al
6063 0.2-0.6 0.35 0.1 0.1 0.45-0.9 0.1 0.1 0.1 0.15 Rest
6061 0.4-0.8 0.7 0.15-0.4 0.15 0.8-1.2 0.04-0.35 0.25 0.15 0.15 Rest
6060 0.3-0.6 0.1-0.3 0.1 0.1 0.35-0.6 - 0.15 0.1 0.15 Rest
6005 0.6-0.9 0.35 0.1 0.1 0.40-0.6 0.1 0.1 0.1 0.15 Rest
Mechanical Properties
Alloy Temper Tensile Strength Yield Strength Elongation
6063 T5 ≥ 160Mpa ≥ 110Mpa ≥ 8%
6063 T6 ≥ 205Mpa ≥ 180Mpa ≥ 8%
6061 T6 ≥ 265Mpa ≥ 245Mpa ≥ 8%
Production Capabilities
Our comprehensive services include:
  • Custom profile design with CAD drawings and 3D models
  • Design optimization to reduce costs and improve performance
  • Complete "one-stop" production from design to surface treatment
6063 Alloy LED Light Heatsink with 2 Year Warranty and ISO9001 Certified Aluminum Extrusion Profile 0
Factory Equipment
Our manufacturing capabilities include:
  • 44 aluminum extrusion lines with maximum outer diameter of 350mm
  • 6800 ton extruder for industrial profiles up to 600mm diameter
  • 6 anodizing production lines with uniform oxidation film thickness
  • 4 powder spraying lines with high-quality Swiss equipment
  • Advanced CNC machining centers for complex profiles
6063 Alloy LED Light Heatsink with 2 Year Warranty and ISO9001 Certified Aluminum Extrusion Profile 1 6063 Alloy LED Light Heatsink with 2 Year Warranty and ISO9001 Certified Aluminum Extrusion Profile 2 6063 Alloy LED Light Heatsink with 2 Year Warranty and ISO9001 Certified Aluminum Extrusion Profile 3
Quality Assurance
We maintain strict quality control throughout our production process:
  • Professional inspectors examine all anodized products
  • Defective products are either reprocessed or scrapped
  • Color consistency is maintained across production batches
  • 100% inspection before packing
6063 Alloy LED Light Heatsink with 2 Year Warranty and ISO9001 Certified Aluminum Extrusion Profile 4 6063 Alloy LED Light Heatsink with 2 Year Warranty and ISO9001 Certified Aluminum Extrusion Profile 5 6063 Alloy LED Light Heatsink with 2 Year Warranty and ISO9001 Certified Aluminum Extrusion Profile 6
Packaging and Shipping
All products are carefully packaged and undergo strict warehouse management procedures to ensure quality upon delivery.
6063 Alloy LED Light Heatsink with 2 Year Warranty and ISO9001 Certified Aluminum Extrusion Profile 7
Certifications
6063 Alloy LED Light Heatsink with 2 Year Warranty and ISO9001 Certified Aluminum Extrusion Profile 8
Notable Projects
We're proud to have supplied aluminum components for major projects including:
  • Soccer City Stadium in Johannesburg - the largest capacity stadium in Africa
  • Collaboration with Lobster Trailers, a Nordic trailer manufacturer
6063 Alloy LED Light Heatsink with 2 Year Warranty and ISO9001 Certified Aluminum Extrusion Profile 9 6063 Alloy LED Light Heatsink with 2 Year Warranty and ISO9001 Certified Aluminum Extrusion Profile 10
