Anodized 6063 T5 Aluminum Cylinder Electrical Motor Shell with 6000 Series Alloy and T3-T8 Temper

TRUNG QUỐC Hentec Industry Co.,Ltd Chứng chỉ
TRUNG QUỐC Hentec Industry Co.,Ltd Chứng chỉ
Thanks a lot for your support for more than 8 years ,we are really appreciate for the good quality of the products and the quality service .

—— James Scott

We have received the goods , they look perfect ,thanks for the help of Team Hentc .

—— Ane Unamuno

Le succès de ce nouveau projet dépend du support de l'équipe HENTEC en termes de technologie de traitement. Merci à HENTEC de nous aider à contrôler les coûts de manière hiệu quả et à répondre à nos exigences en termes de haute Qualité. Nous nous réjouissons de notre hợp tác trong tương lai!

—— Yann Pauwels

Tôi trò chuyện trực tuyến bây giờ

Anodized 6063 T5 Aluminum Cylinder Electrical Motor Shell with 6000 Series Alloy and T3-T8 Temper

Anodized 6063 T5 Aluminum Cylinder Electrical Motor Shell with 6000 Series Alloy and T3-T8 Temper

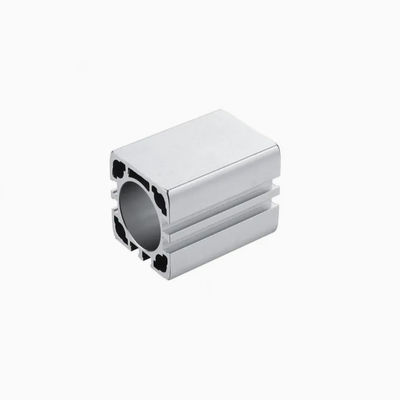

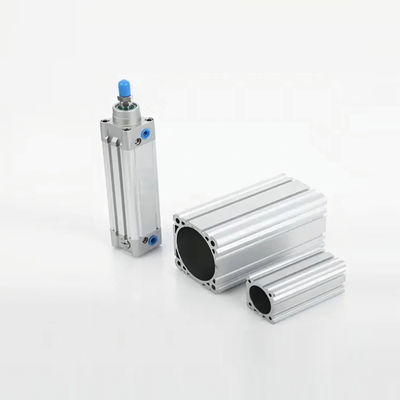

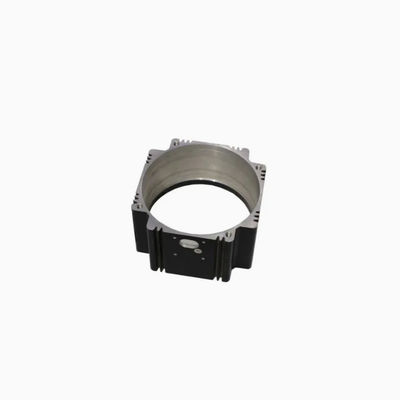

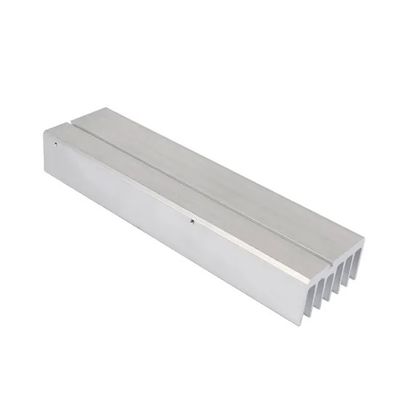

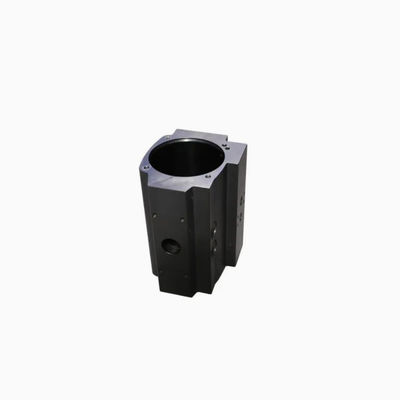

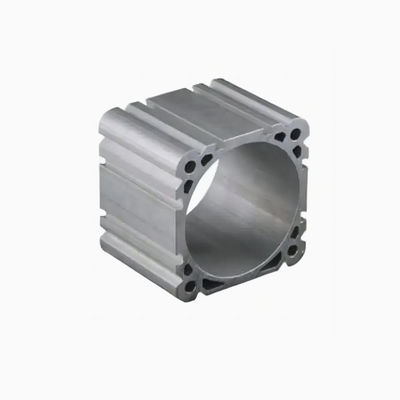

Anodized 6063 T5 Aluminum Cylinder Electrical Motor Shell with 6000 Series Alloy and T3-T8 Temper Anodized 6063 T5 Aluminum Cylinder Electrical Motor Shell with 6000 Series Alloy and T3-T8 Temper Anodized 6063 T5 Aluminum Cylinder Electrical Motor Shell with 6000 Series Alloy and T3-T8 Temper Anodized 6063 T5 Aluminum Cylinder Electrical Motor Shell with 6000 Series Alloy and T3-T8 Temper Anodized 6063 T5 Aluminum Cylinder Electrical Motor Shell with 6000 Series Alloy and T3-T8 Temper Anodized 6063 T5 Aluminum Cylinder Electrical Motor Shell with 6000 Series Alloy and T3-T8 Temper

Hình ảnh lớn :  Anodized 6063 T5 Aluminum Cylinder Electrical Motor Shell with 6000 Series Alloy and T3-T8 Temper

Thông tin chi tiết sản phẩm:
Chứng nhận: SONCAP, ISO, RoHS, TUV
Tài liệu: Sổ tay sản phẩm PDF
Thanh toán:
Số lượng đặt hàng tối thiểu: 500
Giá bán: 2
Chi tiết sản phẩm
Alloy: 6063, 6061, 6005, 6060, 6082 Temper: T5, T6, T66
Surface Treatment: Anodizing, Powder coated, Brushed Hình dạng: Quảng trường
Màu sắc: Bạc, Đen Độ bền kéo: ≥ 160MPa (T5), ≥ 205MPa (T6)
Sức mạnh năng suất: ≥ 110MPa (T5), ≥ 180MPa (T6) Kéo dài: ≥ 8%
Chiều kính tối đa: 350mm Năng lực sản xuất: 50000 CÁI / THÁNG
Loại Ba Lan: Sơn kim học / cơ khí Si Content: 0.2-0.6% (6063)
Mg Content: 0.45-0.9% (6063) Fe Content: 0.35% (6063)
Cu Content: 0.1% (6063)
Làm nổi bật:

6063 T5 Aluminum Cylinder

,

6000 Series Electrical Motor Shell

,

T3-T8 Aluminum Extrusion Profile

Anodized Electrophoresis Anti Scratch 6063 T5 Aluminum Cylinder / Electrical Motor Shell
Electric motor housing aluminum extrusion, also known as aluminum alloy motor shell or servo motor housing aluminum profiles, designed for industrial applications.
Product Features
  1. Material: Aluminum Alloy Extrusion Anodized Aluminium Profile for Pneumatic Cylinder
  2. Alloy temper options: 6063, 6061, 6005, 6060, 6082, T5, T6, T66
  3. Manufacturing standards: EN755, ASTMB221, DIN Standard
  4. Surface treatment options: Mill finish, Anodizing, Powder coated, Brushed
  5. Applications: Industrial equipment, Construction components
  6. Key advantages:
    • Pure 99.7% aluminum materials without scrap content
    • OEM services including custom die design and manufacturing
    • Customizable surface treatments to meet specific requirements
    • Strict quality control processes ensure superior quality
    • Hard alloy composition extends product lifespan
    • Safe and convenient packaging solutions
Manufacturing Process
Die design → Die making → Extruding → Cutting → CNC Machining → Surface treatment → Packing
Technical Specifications
Chemical Composition:
Alloy Si Fe Cu Mn Mg Cr Zn Ti Impurity Al
6063 0.2-0.6 0.35 0.1 0.1 0.45-0.9 0.1 0.1 0.1 0.15 Rest
6061 0.4-0.8 0.7 0.15-0.4 0.15 0.8-1.2 0.04-0.35 0.25 0.15 0.15 Rest
6060 0.3-0.6 0.1-0.3 0.1 0.1 0.35-0.6 - 0.15 0.1 0.15 Rest
6005 0.6-0.9 0.35 0.1 0.1 0.40-0.6 0.1 0.1 0.1 0.15 Rest
Mechanical Properties:
Alloy Temper Tensile strength Yield strength Elongation
6063 T5 ≥ 160Mpa ≥ 110Mpa ≥ 8%
6063 T6 ≥ 205Mpa ≥ 180Mpa ≥ 8%
6061 T6 ≥ 265Mpa ≥ 245Mpa ≥ 8%
Technical Support
Our comprehensive support includes:
  • Custom design services including CAD drawings and 3D models
  • Professional R&D team for design analysis and optimization
  • Complete "one-stop" production from design to surface treatment
  • Strict quality control throughout manufacturing process
Anodized 6063 T5 Aluminum Cylinder Electrical Motor Shell with 6000 Series Alloy and T3-T8 Temper 0
Manufacturing Capabilities
Extrusion: 44 aluminum extrusion lines with maximum outer diameter capacity of 350mm, including a 6800 ton extruder for profiles up to 600mm diameter.
Anodized 6063 T5 Aluminum Cylinder Electrical Motor Shell with 6000 Series Alloy and T3-T8 Temper 1
Anodizing: 6 production lines producing uniform oxidation films in various colors including silver, black, gold, champagne, and imitation steel.
Anodized 6063 T5 Aluminum Cylinder Electrical Motor Shell with 6000 Series Alloy and T3-T8 Temper 2 Anodized 6063 T5 Aluminum Cylinder Electrical Motor Shell with 6000 Series Alloy and T3-T8 Temper 3
Painting: 4 powder spraying lines using Gema Switzerland nozzles with environmentally friendly, durable paints.
CNC Machining: Advanced equipment including 12 PRATIC machining centers, Wegoma cutting machines, 30 punching machines (50-100 ton), and 10 stretch bending machines.
Anodized 6063 T5 Aluminum Cylinder Electrical Motor Shell with 6000 Series Alloy and T3-T8 Temper 4 Anodized 6063 T5 Aluminum Cylinder Electrical Motor Shell with 6000 Series Alloy and T3-T8 Temper 5 Anodized 6063 T5 Aluminum Cylinder Electrical Motor Shell with 6000 Series Alloy and T3-T8 Temper 6
Packing and Shipping
Finished products are manually packaged with strict warehouse management procedures ensuring quality control before delivery.
Anodized 6063 T5 Aluminum Cylinder Electrical Motor Shell with 6000 Series Alloy and T3-T8 Temper 7
Certifications
Anodized 6063 T5 Aluminum Cylinder Electrical Motor Shell with 6000 Series Alloy and T3-T8 Temper 8
Company History
2004: Recognized Brand of the Building Industry Material Market
2006: Certificate for Product Exemption from Quality Surveillance Inspection & ISO9001
2009: Advanced Company, Jiangsu Famous Brand Certificate, Credible Product of Quality in Jiangsu Province
2012: Established business relationships with Panasonic and LG
2015: Became innovative producer and supplying partner for BOSCH (Germany)
2017: Developed new baseboard heater products
2019: Cooperated with world's largest heater manufacturers
2023: Expanding overseas distributor network
Notable Projects
Anodized 6063 T5 Aluminum Cylinder Electrical Motor Shell with 6000 Series Alloy and T3-T8 Temper 9
Soccer City Stadium, Johannesburg: Supplied aluminum components for Africa's largest 94,000-seat stadium.
Anodized 6063 T5 Aluminum Cylinder Electrical Motor Shell with 6000 Series Alloy and T3-T8 Temper 10 Anodized 6063 T5 Aluminum Cylinder Electrical Motor Shell with 6000 Series Alloy and T3-T8 Temper 11
Other Projects: Collaboration with Nordic trailer manufacturer Lobster Trailers and supply of aluminum legs for school furniture projects.
